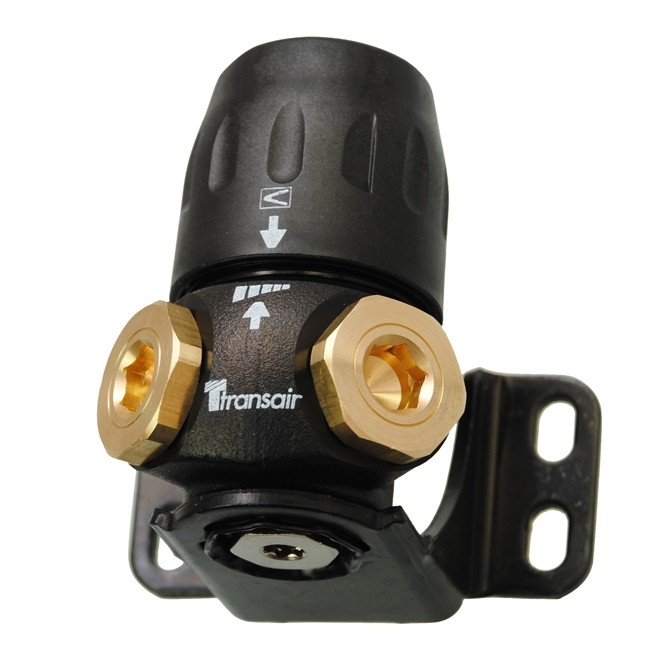

Wall bracket w.2 sockets, 1/2 for pipe 25mm (1st/box)

Transair wall brackets make it quick and easy to connect machines or tools to the supply line. These fittings are rated for use in compressed air and industrial/inert gas applications. To match the needs/constraints of the environment, Parker offers options with one (1), two (2) or three (3) ports. For added control and safety over media flow, we offer select wall mounts with an integrated ball valve. All wall mounts are equipped with a drainage outlet for easy air or moisture drainage.

The 'full bore' design of the Transair wall brackets combined with the low coefficient of friction of the aluminium tube ensures optimal flow through the entire compressed air system. All wall brackets are 100 % recyclable, silicone-free and made of flame retardant materials. All wall mounts meet the UL94HB standard. Parker Hannifin warrants all Transair components to be free from defects in material and workmanship for 10 years from the date of installation.

Markets:
- Car assembly
- Food and drink
- Packaging
- Industrial plants
- Aeronautics and space

Features / Benefits:
- Fast connection technology
- Modular and reusable
- Corrosion resistant
- Full-bore design
- Optimal flow rate
- 100 % recyclable
- Faster installation
- Lower installation costs
- Immediate pressurisation
- Lightweight
- 10 year guarantee

Areas of use:
- Compressed air
- Vacuum cleaners
- Industrial/inert gases (e.g. argon, nitrogen, carbon dioxide)

Maximum working pressure:
- 1/2" to 4": 232 psi (15.9 bar) when operating between -20 and +46.1 C (-4 to +113 F)
- 6": 188 psi (12.9 bar) when operating between -20 and +60 C (-4 to +140 F)

Maximum working temperature (1/2" to 4"):
- 185°F when the system is operated at 101psi or below
- 74 °C when operating at 145 psi or below
- 140°F when the system is operated at 188 psi or lower
- 115 °F when the system is operated at 232 psi or lower
